Setting the Stage
In the world of networking, new standards appear quickly. It feels like just yesterday when 10G was the cutting edge, and now 100G and 400G are making headlines. But if you step into most real-world data centers or campus networks, you’ll notice something interesting: 40G connections are still everywhere. Among the different flavors of 40G optics, the 40GBASE-LR4 module has carved out its place. It is the module many engineers trust when they need to link equipment across longer spans of fiber without breaking the budget.
The Basics of 40GBASE-LR4

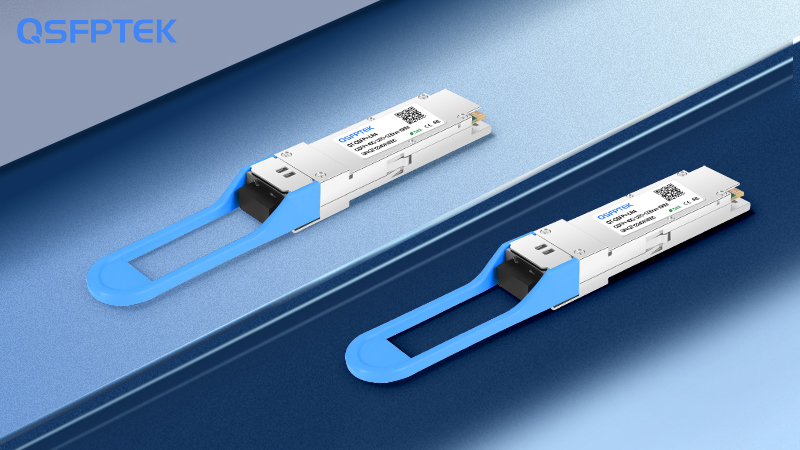

At its heart, 40GBASE-LR4 is about making high-speed links over single-mode fiber practical. Unlike short-range modules that rely on parallel multimode fiber, LR4 takes a different approach. It slices the 40G signal into four smaller lanes, each running at 10G, and then sends them across four wavelengths in the 1310nm window. On the other end, the process is reversed and the signal is reassembled into a 40G stream.
This design makes it possible to cover up to 10 kilometers. That’s plenty for large campuses, metro access rings, or connections between separate data center halls. The fact that all this is packaged inside a compact QSFP+ form factor adds to its appeal.
Why Engineers Keep Choosing LR4
One reason LR4 has held its ground is reliability. It’s a mature technology with years of proven deployments. Network managers don’t have to worry about hidden surprises; they know what to expect. The interoperability across vendors is strong, and most major switch platforms support LR4 without issues.
Another reason is economics. While 100G prices have dropped, they are still higher than 40G in many cases. For organizations that don’t yet need the jump to 100G, LR4 strikes a balance: fast enough to handle growing demand, but not so costly that it strains budgets. That middle ground is especially attractive to universities, government networks, and mid-sized enterprises.
Deployment Scenarios That Make Sense
Think about a hospital campus where different buildings need to share massive medical imaging files. Distances stretch well beyond the reach of multimode optics. Here, LR4 makes perfect sense: fast, stable, and straightforward.
Or consider a regional ISP that wants to offer dedicated 40G services to business customers. They can light up dark fiber with 40GBASE-LR4 modules and deliver a reliable service without investing in more complex coherent systems. In data centers, LR4 often acts as the backbone link between distribution switches and the core, bridging distances that SR4 modules simply can’t cover.
Technical Considerations
Even though LR4 is considered user-friendly, there are a few practical details to keep in mind. Fiber cleanliness is one. Since single-mode connectors are more sensitive to dust, engineers need to check and clean before plugging in. Another is link budgeting. While 10 kilometers is the nominal reach, actual performance depends on fiber quality and connector losses. Still, within these guidelines, LR4 is usually plug-and-play.
Power consumption is moderate, typically higher than SR modules but well within the tolerance of modern switch hardware. Heat generation is also manageable, so data centers don’t need special cooling just for LR4.
The Market Landscape
The LR4 ecosystem is well established. Original brand modules are available from all the big switch vendors, but third-party suppliers like QSFPTEK have stepped in to provide cost-effective alternatives. These versions are coded to be compatible with major platforms, giving buyers more options.
The price drop over the last few years has also extended LR4’s life. What was once a premium module is now within reach for many organizations. This affordability helps networks stretch their budgets further, especially in times when upgrading to 100G across the board might not be feasible.
Looking Beyond Today
It’s true that 40G is not the future. The industry is moving toward faster speeds, and eventually, LR4 will become less common. But transitions in networking don’t happen overnight. Just as 1G and 10G are still around today, 40G will continue to coexist with newer standards for years.
The LR4 standard, in particular, is likely to remain useful in environments that need stable performance at moderate cost. In some ways, it has become the “sweet spot” for organizations that outgrew 10G but aren’t ready to overhaul everything for 100G.
Closing Thoughts
The 40GBASE-LR4 optical module isn’t the flashiest piece of technology, but it’s one of the most dependable. It fills a gap that other transceivers don’t handle as well, offering long reach without excessive cost or complexity. In real-world networking, where budgets and practical constraints matter as much as raw speed, LR4 continues to shine.
For anyone planning or maintaining a network today, it’s worth remembering that not every solution has to chase the latest headline speed. Sometimes, the best choice is the one that quietly does its job day after day. That’s exactly what 40GBASE-LR4 has been doing, and it’s why it still holds value.
